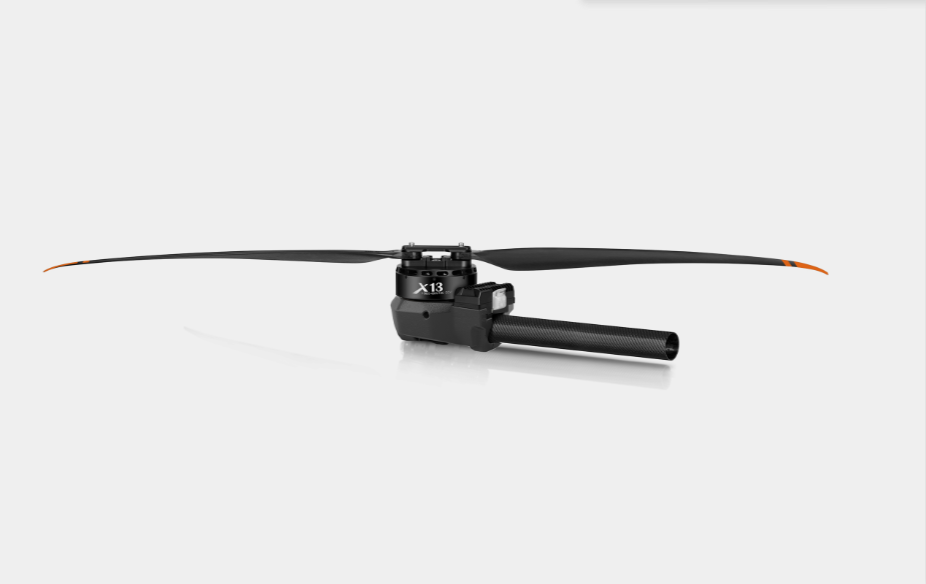

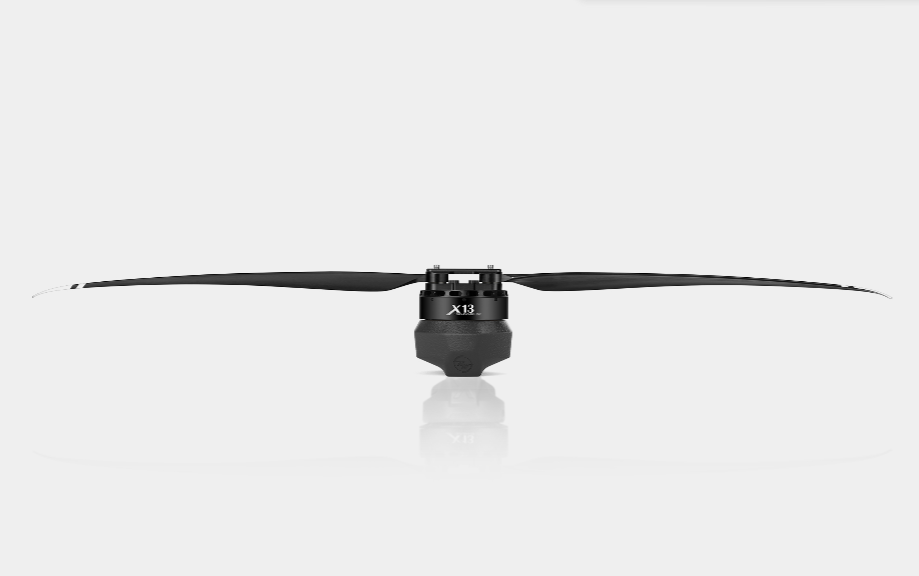

X13K Multi-rotor Motor

The X13-14S/X13-18S powertrains come standard with imported waterproof bearings and IPX6 protection rating, suitable for operation in -20~50℃ multi-environment scenarios. They deliver a maximum thrust of 57kg at sea level, with single-axis thrust of 25-27kg/rotor—boasting strong, stable power.

Both models feature a 3500W rated input power and 3000W rated output power, compatible with 50mm outer-diameter carbon tubes, and paired with MFP 56x20 propellers for high power matching. The X13-14S supports 12-14S LiPo batteries (60rpm/V KV value), while the X13-18S is adapted for 18S LiPo batteries (45rpm/V KV value). Their maximum allowable voltages reach 65V/81V respectively, and the 200A short-duration current can handle high-load scenarios. They are compatible with 3.3V/5V PWM signals and 50-500Hz frequencies, fitting most flight control systems.

With a total weight (including propellers) of only 4257g (14S) / 4087g (18S), the lightweight design balances thrust and portability, making them cost-effective power solutions for industrial drones and load-carrying aircraft.
