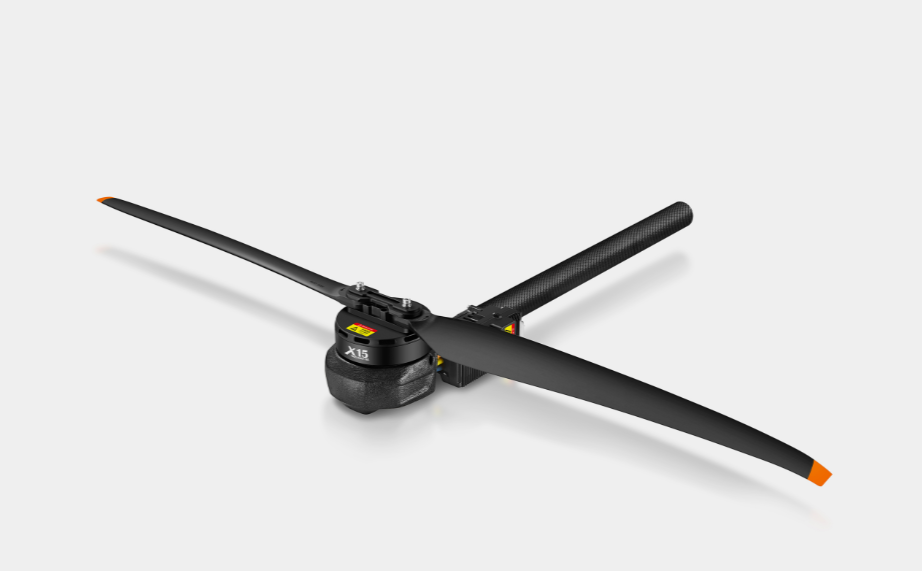

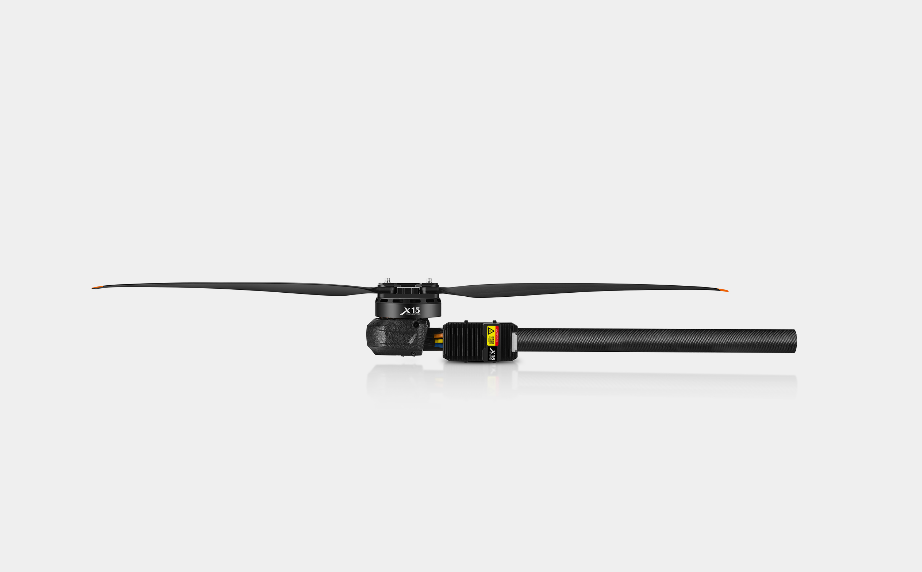

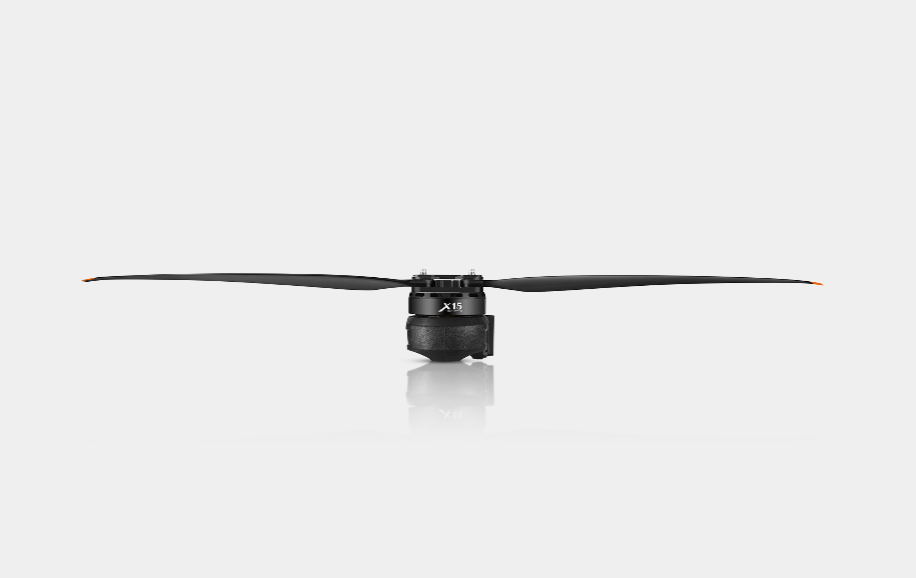

X15K Multi-rotor Motor

This industrial-grade powertrain delivers a maximum thrust of 72kg (69V) at sea level, with a recommended single-axis takeoff weight of 32.5-37.5kg and an efficiency range of 8.2-7.6g/W—boasting robust power and excellent energy efficiency. It is compatible with 18S LiPo batteries, features a rated input of 5000W and output of 4400W, and can handle high-load operation scenarios with a short-duration current of 300A.

Equipped with an IPX6 protection rating and waterproof bearings, it supports stable operation in multi-environment conditions ranging from -20°C to 50°C. It adopts dual-throttle control (PWM+CAN) and CAN communication (compatible with HWCAN+DroneCAN protocols), with an open parameter-tuning function. It is compatible with 60mm carbon tubes and paired with MFP 63x24 carbon-plastic propellers, ensuring optimal power matching.

Weighing 5908g (including propellers), this powertrain is compatible with 3.3V/5V PWM signals (50-500Hz frequency), and its fixed operating pulse width eliminates the need for complex calibration. It is a highly reliable power solution for heavy-lift drones and industrial aircraft.
