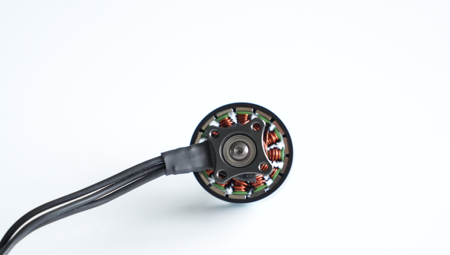

Drone Motor Series - T1-2812 1325KV

SKU:
Price negotiable.The T1-2812 1325KV drone motor is the ultimate power core for ultra-high-speed FPV racing and aerobatic drones, delivering blistering rotational speed and instant throttle response. Its 1325KV extreme-high-speed configuration + 12N14P winding structure unlocks peak agility, making it ideal for competitive racing, precision aerobatics, and high-maneuverability hobbyist flights.
Constructed with a 304 stainless steel shaft (5mm diameter) and 5×11×5 high-precision bearing, it ensures durability and low-friction operation even at max RPMs. The N52SH curved magnet and Kawasaki 0.2 stator maximize magnetic efficiency, while its 39 ultra-low internal resistance minimizes power loss—extending battery life during high-intensity, high-speed runs. The 18# 250mm compact cable fits tight FPV drone frames, avoiding signal interference without adding unnecessary weight.
Weighing only 75.5g (excluding silicone wire), this ultra-lightweight motor prioritizes speed and agility, making it perfect for professional FPV racing drones, competitive aerobatic quadcopters, high-speed hobbyist UAVs, and lightweight performance aircraft. Its extreme KV output and minimal weight dominate fast-paced, precision-required flight scenarios.
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Drone Motor Series - T1-2812 1325KV
  • Drone Motor Series - T1-2812 1325KV
1/1
  • Drone Motor Series - T1-2812 1325KV
  • Description
Drone Motor Series - T1-2812 1325KV
KV 1325
shaft  304
Bearing 5*11*5
Internal Resistance 39
Shaft Dianeter 5mm
Configuration 12N14P
Stator Kawasaki 0.2
Magnet N52SH (Curved lagnet)
Motor Cable 18#,250mn
Excluding weight of silicone vire 75.5g
