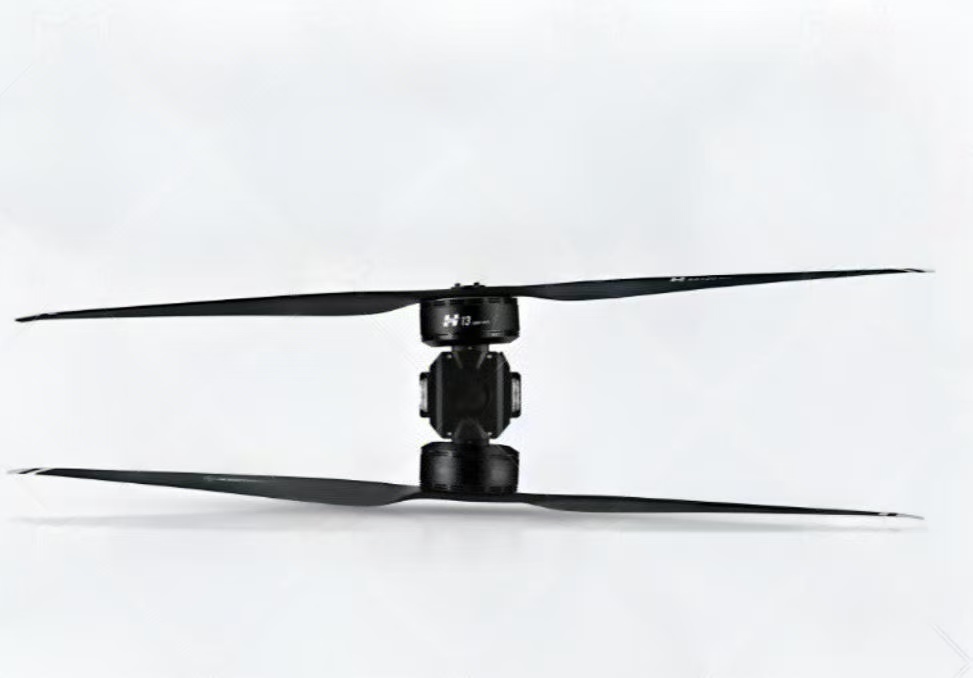

H13 Multi-rotor Motor

The H13MD coaxial powertrain (available in two models: MSC 54x20/57x20) delivers a maximum thrust of 110-113kg, with a recommended single-axis thrust of 45kg and an efficiency of 6.8-7.2g/W—combining robust power with excellent energy efficiency. Compatible with 24S/28S LiPo batteries, it covers a voltage range of 30-130V, with a rated input power of 6300-6500W and output of 5544-5720W, making it ideal for high-load operations of heavy-lift drones and industrial aircraft.

Equipped with a 13825-37KV motor (36N42P slot-pole configuration) and H150A FOC ESC (UAVCAN communication, dual-throttle control), it is compatible with 60mm carbon tubes and paired with carbon fiber straight propellers (MSC 54x20/57x20) for optimal power matching. With IP35 dust and water resistance and a wide temperature range of -40~65℃, it operates stably in harsh environments. The complete powertrain (including wires and propellers) weighs 7890-8010g, balancing high thrust with industrial-grade reliability.

This full-stack configuration (from motor and ESC to propellers) is tailored for industrial heavy-lift, inspection, and similar scenarios, making it a cost-effective choice for heavy-duty drone powertrains.
