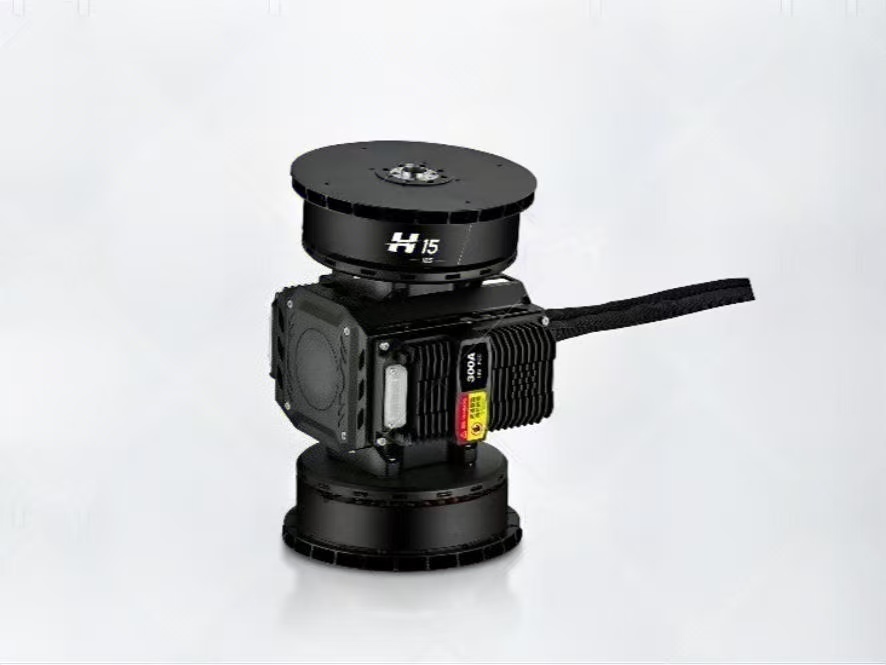

H15 Multi-rotor Motor

The CM-H15 coaxial powertrain delivers an ultra-high maximum thrust of 142kg at sea level, with a recommended single-axis thrust of 60kg and an efficiency of 7.2g/W—combining robust power with excellent energy performance. Compatible with 24S~28S LiPo batteries (covering a voltage range of 36-130V), it features a rated input power of 8300W and output of 7300W, easily handling high-load operations for heavy-lift drones and industrial transport aircraft.

Equipped with a 15623-35KV motor (36N44P slot-pole configuration) and H300A-FOC ESC (Cyphal/UAVCAN communication, dual-throttle control), it is compatible with 80mm wall-thickness carbon tubes and paired with HF63*24" carbon fiber folding propellers for optimal power chain matching. With IPX6 water resistance and a wide operating temperature range of -40~65℃, it runs stably in harsh environments. The complete powertrain (including wires and propellers) weighs 11900±200g, balancing ultra-high thrust with industrial-grade reliability.

The ESC supports 300A peak current and fault storage + logging functions, while the propellers use lightweight carbon fiber composite materials. From core components to detailed configurations, this powertrain is fully adapted to industrial scenarios such as heavy-duty load-carrying and long-endurance inspection—making it a flagship choice for heavy-lift drone powertrains.
