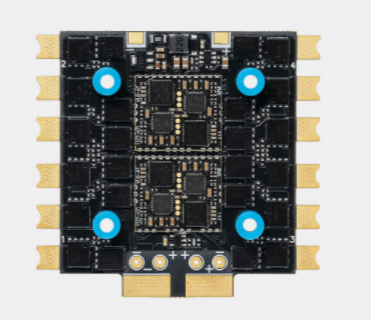

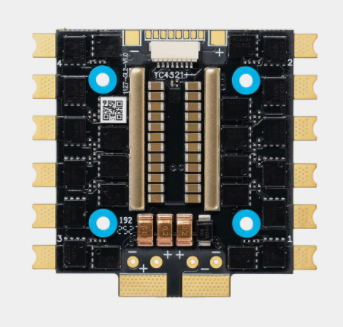

RTF 100A 4in1 8S Lite AT

The RTF 100A 4in1 8S Lite AT is a heavy-duty 4-in-1 ESC built for 15-18 inch 4-axis FPV racing drones, delivering 100A continuous current (120A peak) per channel and compatibility with 4-8S LiPo batteries—ideal for powering large-frame drone flights with consistent, high-output performance.

Equipped with 8AWG power cables (red/black, 135mm each) and pre-soldered pads (no pre-attached wires/plugs), it offers flexible, custom wiring for robust power delivery. At 60×57×7mm and 39g, it balances a durable build with a compact footprint suitable for mid-to-large racing drone setups.

Running on a self-developed 32-bit ESC program, this ESC supports BLHeliSuite software for parameter adjustment, plus features like PWM/DShot300/600 throttle signals, bidirectional DShot, motor direction control, and a 48kHz drive frequency—ensuring smooth, responsive motor control for agile, high-speed flight.
