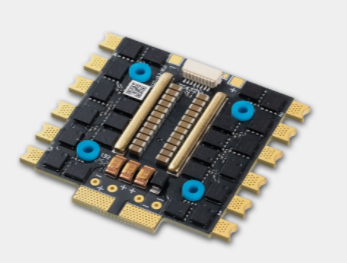

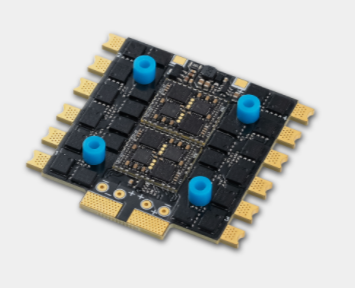

RTF 80A 4in1 8S Lite AT

The RTF 80A 4in1 8S Lite AT is a robust, high-output 4-in-1 ESC engineered for 13-15 inch 4-axis FPV racing drones. It delivers 80A continuous current (100A peak) per channel and supports 4-8S LiPo batteries, providing the heavy-duty power needed for large-frame drone flights. Built with a 10AWG power cable (red/black, 135mm each) and pre-soldered pads (no pre-attached wires/plugs), it offers flexible wiring for custom builds while maintaining reliable power delivery.

At 56×57×7mm and 39g, this ESC balances durability with a compact footprint suitable for mid-to-large racing drones. It runs on a self-developed 32-bit ESC program, with adjustable parameters via BLHeliSuite software—plus support for PWM/DShot300/600 throttle signals, bidirectional DShot, motor direction control, and a 48kHz drive frequency for smooth, responsive performance.
